What spare parts does RepairFully list for Asus Zenfone 3 Max ZC520TL?

The 15 listings in Available parts above are indexed for Asus Zenfone 3 Max ZC520TL only. Each SKU is checked against model code ZC520TL before dispatch. On the handset, open Settings › About Phone and note the model number. Compare it with the model code in the device header at the top of this page (e.g. ZC520TL). If it matches ZC520TL, the listings in Available parts above are verified for your variant. Tier and warranty are shown on each card.

What quality tiers are available?

Compatible: Aftermarket part, tested for fit and function. Original Grade: Verified original part with source traceability. Premium is not offered for this model. Available only for OLED display models.

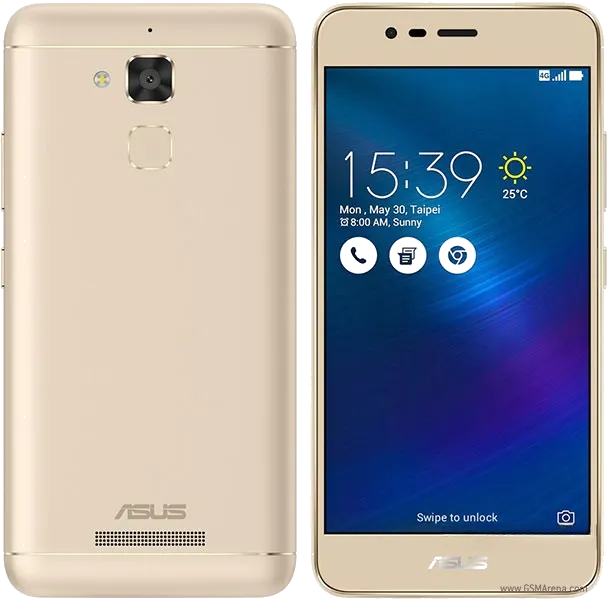

Asus Zenfone 3 Max ZC520TL Spare Parts & Price

Name: Asus Zenfone 3 Max ZC520TL Spare Parts
Brand: Asus

Source: GSMArena device page

Images © manufacturers · identification only · not affiliated with Asus

At a glance

All specifications

Available parts (15) · 12 categories

Display AssemblyCompatible
ZC520TL
OEM LCD Screen for Asus ZenFone 3 Max / ZC520TL / X008D (038 Version) with Digitizer Full Assembly (Black)
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹911
Display AssemblyCompatible
ZC520TL
OEM LCD Screen for Asus ZenFone 3 Max / ZC520TL / X008D Digitizer Full Assembly with Frame（Gold)
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹1,032
Charging Port
ZC520TL
Charging Port Flex Cable for Asus ZenFone 3 Max / ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹154
Back Panel
ZC520TL
Aluminium Alloy Back Battery Cover for ASUS ZenFone 3 Max / ZC520TL(White)
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹284
Back Panel
ZC520TL
Aluminum Alloy Back Battery Cover for Asus ZenFone 3 Max / ZC553KL (Silver)
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹339
Camera Module
ZC520TL
Back Camera Module for Asus Zenfone 3 Max ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹963
Loudspeaker
ZC520TL
Speaker Ringer Buzzer for Asus ZenFone 3 Max / ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹118
Earpiece
ZC520TL
Ear Speaker Flex Cable for Asus Zenfone 3 Max ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹299
Frame Housing
ZC520TL
Middle Frame Bezel with Adhesive for Asus ZenFone 3 Max / ZC520TL / X008
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹306
Camera Lens
ZC520TL
Back Camera Lens for Asus ZenFone 3 Max / ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹44
Touch Digitizer
ZC520TL
Front Screen Outer Glass Lens for Asus Zenfone 3 Max / ZC520TL(Gold)
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹138
Power & Volume Buttons
ZC520TL
Volume Side Button Outer for Asus Zenfone 3 Max ZC520TL Gold - Plastic Key
Verified for your Asus Zenfone 3 Max ZC520TL
Out of stock
₹299
Power & Volume Buttons
ZC520TL
Power Button & Volume Button Flex Cable for Asus Zenfone 3 Max ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹45
Flex Cable
ZC520TL
Fingerprint Sensor Flex Cable for Asus Zenfone 3 Max ZC520TL X008D(Gold)
Confirm variant for your Asus Zenfone 3 Max ZC520TL
In stock
₹248
OthersCompatible
ZC520TL
LCD Connector for Asus Zenfone 3 Max ZC520TL
Verified for your Asus Zenfone 3 Max ZC520TL
In stock
₹299

Part matching for Asus Zenfone 3 Max ZC520TL

The 15 listings in Available parts above are indexed for Asus Zenfone 3 Max ZC520TL only. Each SKU is checked against model code ZC520TL before dispatch.

On the handset, open Settings › About Phone and note the model number.
Compare it with the model code in the device header at the top of this page (e.g. ZC520TL).
If it matches ZC520TL, the listings in Available parts above are verified for your variant. Tier and warranty are shown on each card.

Device specifications

Hardware reference for Asus Zenfone 3 Max ZC520TL. Spare parts are matched by model code — not by display size alone.

Full specification sheet for Asus Zenfone 3 Max ZC520TL. Rows are grouped by category; within each row the first cell is the specification name and the second its value.
Display	Display Type	IPS LCD
	Size	5.2 inches, 74.5 cm2 (~67.7% screen-to-body ratio)
	Resolution	720 x 1280 pixels, 16:9 ratio (~282 ppi density)
Platform	OS	Android 6.0.1 (Marshmallow), upgradable to 7.0 (Nougat), ZenUI 3
	Chipset	Mediatek MT6737M (28 nm)
	CPU	Quad-core 1.25 GHz Cortex-A53
	GPU	Mali-T720MP2
Memory	Internal	2GB RAM
Memory	Card slot	microSDHC (uses shared SIM slot)
Main Camera	Camera	13 MP, f/2.2, AF

Similar models in Zenfone series

Latest Asus models in Zenfone series — release year and model code shown.

Browse all brands

Frequently asked questions

On your device, open Settings → About Phone and check the model number (e.g. ZC520TL).

Match it against the codes shown above so you are ordering parts for your exact regional variant — not a look-alike.

Compatible: Aftermarket part, tested for fit and function.
Original Grade: Verified original part with source traceability.

Premium is not offered for this model. Available only for OLED display models.

Source: Quality guide

No — each Asus Zenfone series model has unique displays, batteries, and connectors.

Select your exact Asus Zenfone 3 Max ZC520TL to guarantee fit.

If RepairFully sent the wrong part, we replace it at no cost. If you selected the wrong device/part, replacement may be offered case-by-case but refund is not guaranteed.

Source: Payments & refunds · updated 4 Apr 2026

Sound	Loudspeaker	Yes
Sound	3.5mm jack	Yes

Comms	WLAN	Wi-Fi 802.11 b/g/n, Wi-Fi Direct
	Bluetooth	4.0, A2DP, EDR
	NFC	No
	USB	microUSB 2.0, OTG
	Network	GSM / HSPA / LTE

Misc	Dimensions	149.5 x 73.7 x 8.6 mm (5.89 x 2.90 x 0.34 in)
	Weight	148 g (5.22 oz)
	Build	Glass front, aluminum back, aluminum frame
	SIM	Nano-SIM + Micro-SIM

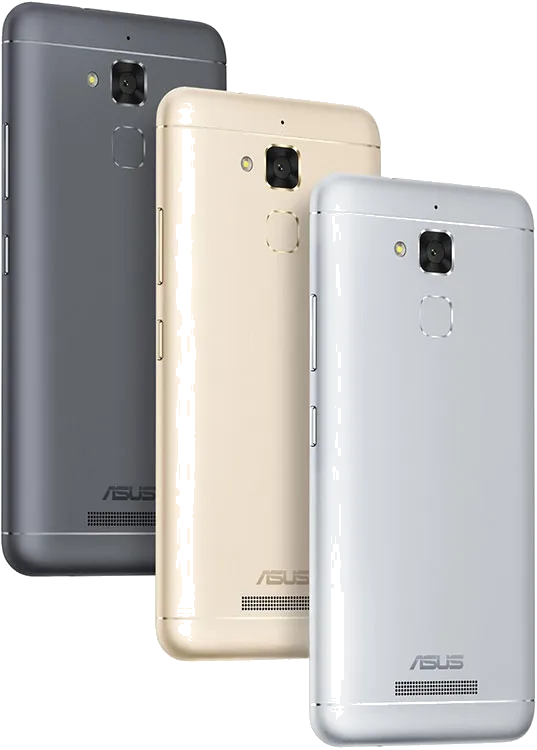

	Colors	Titanium Grey, Glacier Silver, Sand Gold
